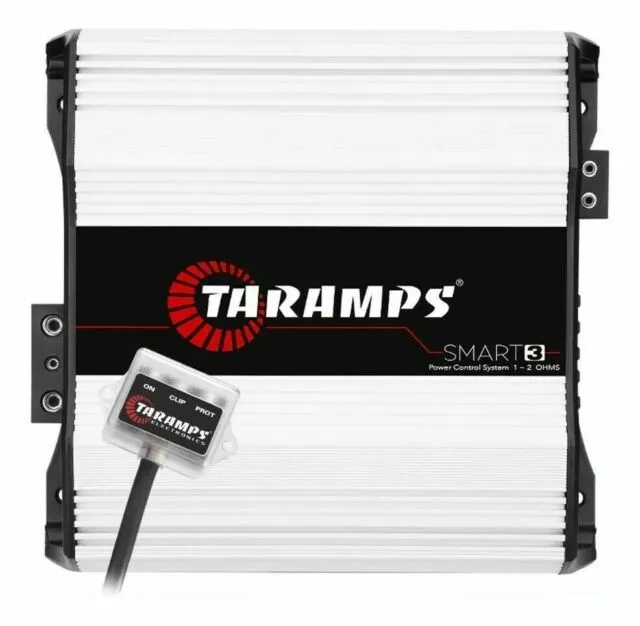

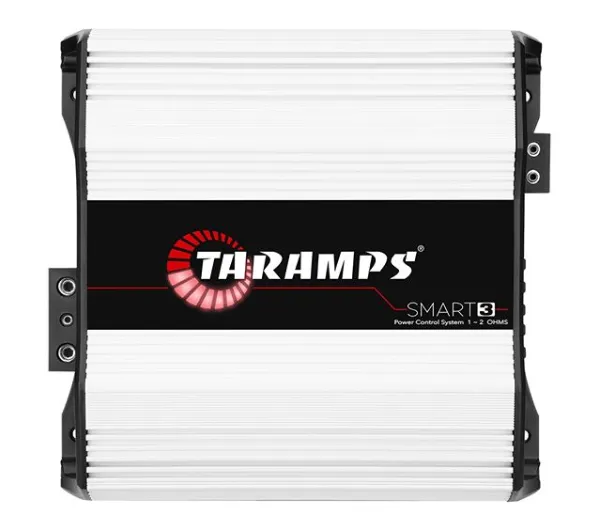

Taramp's Smart 3 amplifier uses their latest technology to deliver 3000 Watts of competition level sound at 1 or 2 ohms. It is designed to provide high performance with optimal power and sound quality aimed at the international music market.
Technical Specs:
- Number Of Channels: 01
- Maximum Power:
- @ 12.6 VDC - 1 OHM: 3000W RMS
- @ 12.6 VDC - 2 OHMS: 3000W RMS
- @ 12.6 VDC - 4 OHMS: 2000W RMS
- Input Sensitivity: 0.22V ~ 4V
- Signal to Noise Ratio: >90dB
- Frequency Response: 10Hz ~ 10KHz (-3dB)
- Crossover High Pass (Hpf): 10Hz ~ 90Hz (-12dB/8ª) Variable
- Crossover Low Pass (Lpf): 90Hz ~ 10KHz (-12dB/8ª) Variable
- Bass Boost: Freq.: 35Hz ~ 55Hz, Boost: 0 ~ 10dB
- Efficiency: 79%
- Input Impedance: 10K Ohms
- Protection System: Output short-circuit, low/high supply voltage and thermal protection
- Mininum Supply Voltage: 9 VDC
- Maximum Power Rating: 16 VDC
- Consumption At Rest: 2.40 A
- Musical Maximum Consumption: 150 A
- Maximum Consumption in Sinusoidal Signal: 300 A
- Dimensions (WxDxH): 8.98" x 2.76" x 9.37"
- Weight: 5.72 lb
